Make your pieces embossed like never before

Soft Cutter 2.0 is an essential tool designed for precision cutting of materials such as extruded polystyrene (XPS), expanded polystyrene (EPS) and similar foam materials.

Easy to customize

Recommended for any entrepreneur who works with interior design, decoration, corporeal letters, mock-up prototypes, events, publicists, graphic design, architecture, packaging and more.

Easy to use

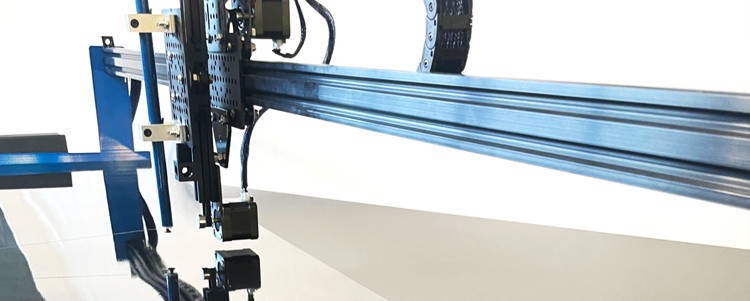

It is a computer-controlled cutter that is utilized to cut any shape. The hot wire moves in the Y and X planes thanks to micromotors, which guarantee impeccable precision, gradual speed of processing, and quality of your finished product.

Sit back and enjoy while the cutter does the work

This machine does its work pleasantly since it does not produce noise or residues that are difficult to clean and it works with an easy cutting system.

It has an ergonomic design

A's Soft cutter offers comfort for the user, it is a light machine that can be placed on any desk, it is easy to assemble, and its size allows the user to make no effort to place the foam sheets.

These are the dimensions of our packaging...

reinforced cardboard packaging measures 17" high x 17" deep x 60" wide a total weight of 43 pounds, a dimension in cubic feet of 9.94' ft³

The creativity of creating

Integrating paints, vinyl and finishes according to your needs.

Tech Specifications

Machine Dimennsions

Dimensions: 62" wide x 46" height x 13.5" depth
Weight: 33 Lb

Voltage:

12V (includes AC/DC adapter)

Technical

Maximum cutting dimension: 48"L x 24" / 4" thickness
Cutting speed: Max. 20in/min / Min. 2in/min
Wire thickness: 0,15mm
Wire type: NiCr (Nichrome) / Titanium Alloy wire
Data Formats for export: PDF, AI, CDR, EPS, DXF:

PC Requirements

Windows XP, Vista, Windows 7,8,10,11
USB Conenection

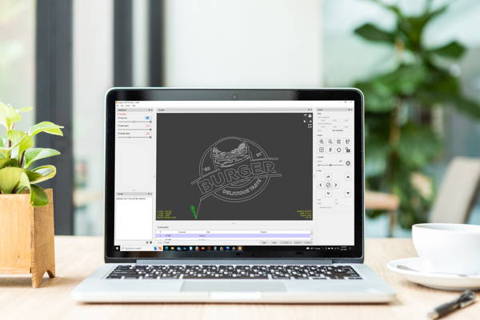

Software Control: Software included
Machine Type:: Hot wire :

Warranty

Warranty:1 year

Tech Specifications

Machine Dimennsions

Dimensions: 62" wide x 46" height x 13.5" depth
Weight: 33 Lb

Voltage:

12V (includes AC/DC adapter)

Technical

Maximum cutting dimension: 48"L x 24" / 4" thickness

Cutting speed: Max. 20in/min / Min. 2in/min

Wire thickness: 0,15mm

Wire type: NiCr (Nichrome) / Titanium Alloy wire

Data Formats for export: PDF, AI, CDR, EPS, DXF:

PC Requirements

Windows XP, Vista, Windows 7,8,10,11
USB Conenection
Software Control: Software included
Machine Type:: Hot wire :

Warranty

Warranty:1 year

For your convenience

FAQS

what is A's Soft cutter??

Is an essential tool that is designed to cut foams, and it is designed to cut any shape in foam by means of a hot wire and is controlled by a specific program.

What materials does it cut?

Expanded polyestyrene (EPS), extruded polyestyrene (XPS), and sinilar materials foams.

Can you cut any other material not mentioned?

Where should the machine be placed?

You can place it on any desktop as long as it is in a ventilated space.

Does the machine come with software?

yes, it is included in the purchase.

What program should I know how to use to use the machine?

You must have or previously learn a basic knowledge of some vector program.

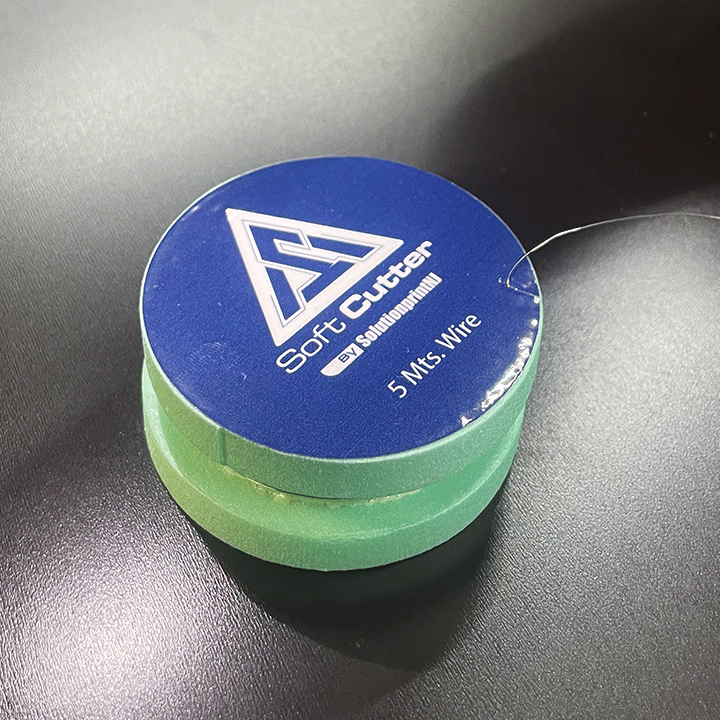

What is the wire used to cut?

NiChrome Wire (NiCr) is the optimal cutting wire choice for Foam cutting equipment for a variety of reasons, but particularly because it is resistant against corrosion and oxidation at very high temperature. The NiChrome cutting wire reaches the temperature of a few hundred Celcius degrees in a matter of seconds. NiChrome wire has high tensile strength and a high melting point. NiChrome Wire (NiCr) has a perfect balance of tensile strength and energy requirements, making it ideal for not only cutting but also fits the capabilities of most power supplies.

What paint is used to paint the foam?

Any water-based latex paint

What glue is used to glue the remaining openings??

joint compound
